UHPPOTE 8 Channel HD CVI/TVI/AHD Passive Video Balun Transmitter Receiver BNC Male to UTP Cable for CCTV System (Aluminium Alloy Shell)
Product details
| Management number | 215128581 | Release Date | 2026/04/12 | List Price | $15.40 | Model Number | 215128581 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: Compatible with all HD-CVI,HD-TVI,HD-AHD Up to 450m/1476ft for 720P CVI Cameras Up to 250m/820ft for 1080P CVI Cameras Up to 250m/820ft for 720P/1080P TVI Cameras Up to 320m/1050ft for 720P AHD Cameras Up to 250m/820ft for 1080P AHD Cameras NTSC,PAL,and SECAM video formats No power required 60dB cross talk and noise immunity Built-in transient suppression protection Technical Specifications: Frequency response: DC to 60Mhz Attenuation: 0.5dB type CMRR: 60dB Surge protection: 4KV ESD: 8KV Impedance: BNC: 75ohms, RJ45: 100ohms Working Temperature: -10℃~+70℃ / 14℉~158℉ Storage Temperature: -30℃~+70℃ / -22℉~158℉ Humidity: 0-95% Dimension(LxWxH): 157x65x29mm / 6.18"x2.56"x1.14" (excluding connectors) Weight: 430g / 0.95lbType of the required wire: Unshielded Cat-5 or above twisted pair wire(please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.) Characteristic impedance: 100Ω±20Ω DC loop resistance: 18Ω/100m(328ft) Differential capacitance:62pf(Maximum) Connection method: Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket,connect the coax to the BNC.Package: 1 x 8CH Passive Video Balun
- Compatible with all HD-CVI,HD-TVI,HD-AHD
- No power required
- 60dB cross talk and noise immunity
- NTSC,PAL,and SECAM video formats

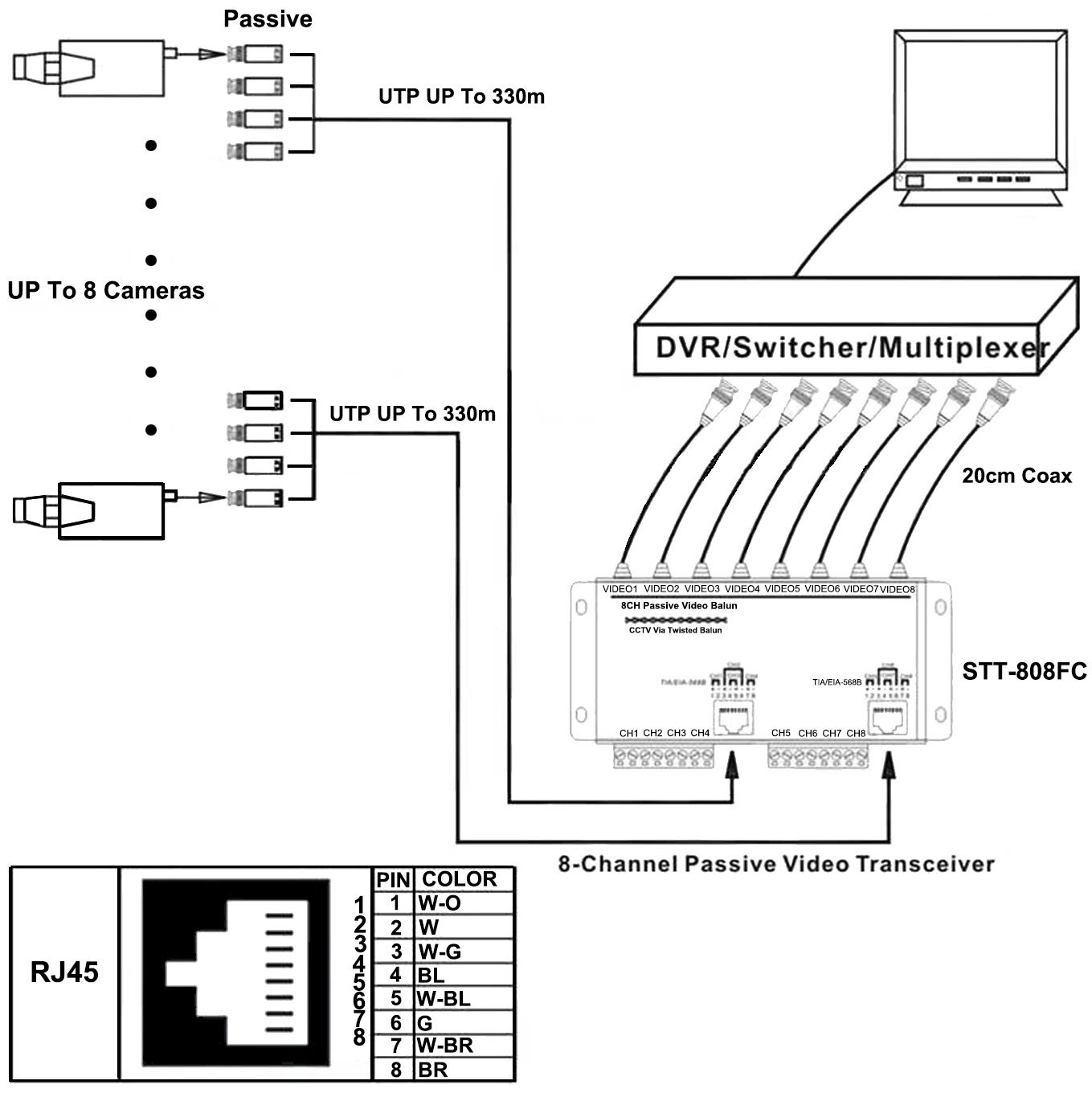

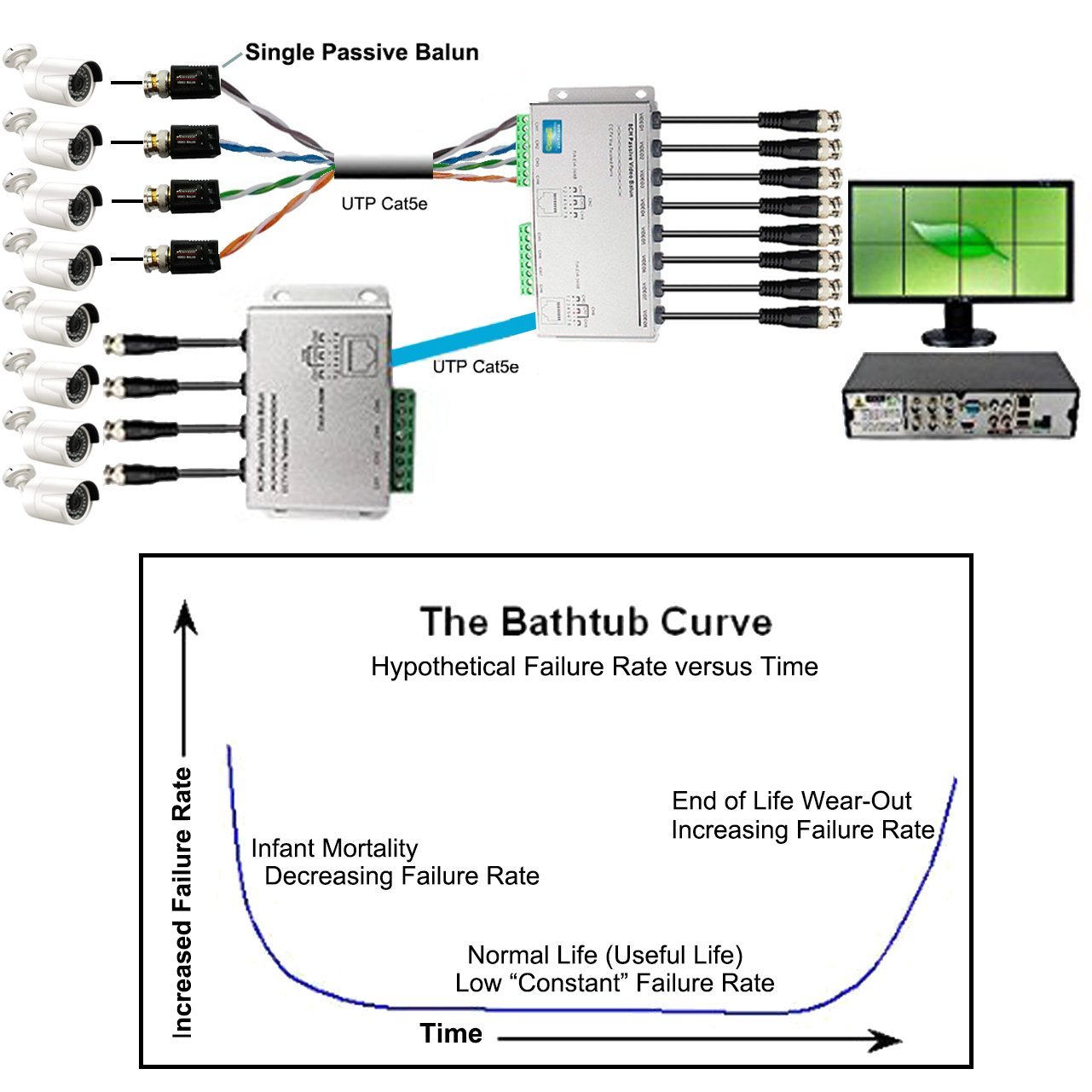

- Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire. It can simplify the wiring project and save wire use quantity
| UPC | 612046379967 |
|---|---|
| Color | White |
| Model | HD-X208-F |
| Frequency | 60 MHz |
| Brand Name | UHPPOTE |
| Cable Type | UTP |
| Item Shape | Round |
| Unit Count | 1 Count |
| Item Weight | 422 Grams |
| Manufacturer | UHPPOTE |
| Connector Type | BNC |
| Number of Pins | 18 |
| Maximum Voltage | 8 Kilovolts |
| Connector Gender | Male-to-Male |
| Compatible Devices | Camera |
| Data Transfer Rate | 60 Megabits Per Second |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Customer Package Type | Standard Packaging |
| Compatible Phone Models | No Compatible Phone Models |
| Ethernet Cable Category | Cat 5 |
| Recommended Uses For Product | CCTV system |
| Other Special Features of the Product | Braided |
